How to Choose a Water Cooler Evaporator for Global Sourcing?

Choosing a Water Cooler Evaporator is no longer a simple capacity comparison. Global buyers must balance cooling performance, energy use, refrigerant compatibility, food-contact safety, and supply continuity. The International Energy Agency’s The Future of Cooling report projects that global space-cooling energy demand could more than triple by 2050. The UNEP Global Cooling Watch 2023 also warns that cooling demand may more than triple without stronger efficiency measures. These figures matter, even for a compact dispenser hidden beneath a countertop.

Professor Toby Peters, a leading sustainable-cooling researcher, has said, “Cooling is the fastest growing use of energy in buildings.” His statement gives procurement teams a wider perspective. An evaporator that saves a few watts during every cycle can reduce operating costs across thousands of units. Yet efficiency claims need testing. Ask for cooling-capacity curves, ambient-temperature limits, refrigerant details, and independent laboratory evidence. Do not rely on a polished catalogue alone.

A practical sourcing review should examine copper or stainless-steel construction, surface treatment, pressure resistance, and compatibility with the cooler’s compressor. Check performance at 32°C or 35°C ambient conditions, not only in a quiet showroom. Confirm certifications, factory audits, traceability, minimum order quantities, and replacement-part availability. A cheaper Water Cooler Evaporator may create higher freight, service, or compliance costs later. There is no perfect specification. Some buyers still overlook noise, condensation control, or regional voltage differences. This guide explores how to compare suppliers honestly, test samples, and choose a reliable evaporator for global deployment.

Table of Contents [Hide]

1 Define Cooling Duty with Q̇ = ṁCpΔT and a 10–20% Design Margin

2 Compare Copper (~385 W/m·K) and Aluminum (~205 W/m·K) Heat Transfer

3 Screen R290 (GWP 3) Versus R134a (GWP 1,430) Under ISO 817

4 Specify 304 Stainless Steel (~16 W/m·K) for Hygienic Water Contact

5 Audit Global Suppliers Against IEC 60335-2-24 and A3 Refrigerant Safety

Define Cooling Duty with Q̇ = ṁCpΔT and a 10–20% Design Margin

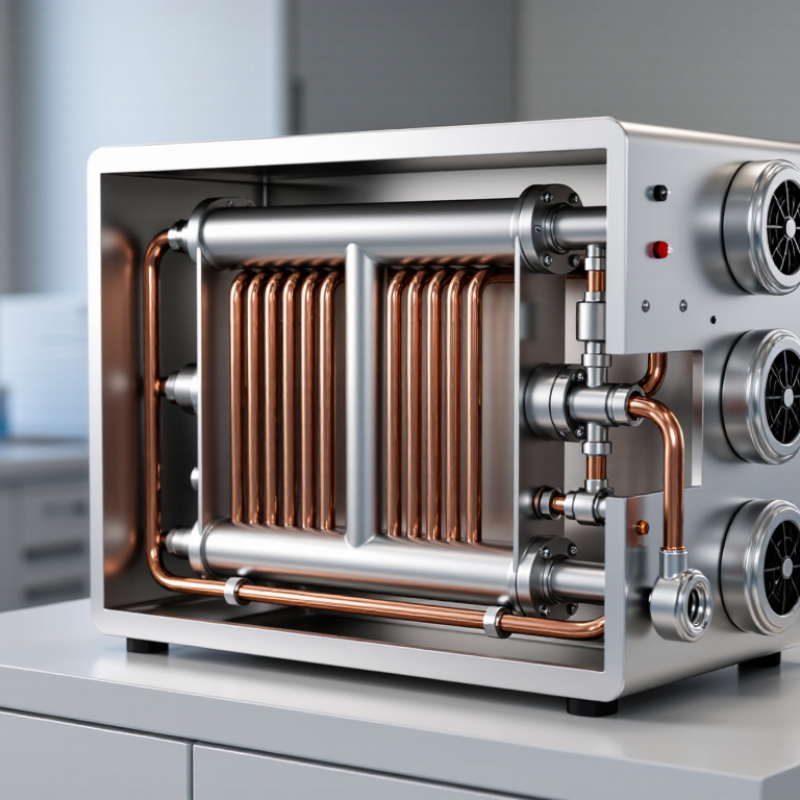

How to Choose a Water Cooler Evaporator for Global Sourcing?

Define Cooling Duty with Q̇ = ṁCpΔT and a 10–20% Design Margin

A water cooler evaporator should begin with measured cooling demand, not a catalog capacity. Use Q̇ = ṁCpΔT. Here, ṁ is water mass flow, Cp is specific heat, and ΔT is the temperature drop. Record inlet and outlet temperatures during normal operation. A five-degree error can change the required duty significantly. Keep units consistent, such as kilograms per second, kilojoules per kilogram-kelvin, and kilowatts.

Measure the real operating range. Include peak flow, startup conditions, fouling, and the warmest expected ambient temperature. Then apply a 10–20% design margin to the calculated duty. A stable laboratory process may need closer to 10%. Variable production may justify 20%. More margin is not always safer. Oversizing can reduce control stability, increase cost, and cause short cycling.

Check the result against evaporating temperature, refrigerant selection, pressure drop, and heat-transfer surface area. Ask the supplier for performance data at your actual water temperatures, not only nominal ratings. For global sourcing, request drawings, material specifications, test records, and electrical requirements early. Confirm whether the evaporator tolerates local water quality and cleaning practices. I have seen projects fail because flow was estimated from a pump label. That shortcut looked reasonable, but it ignored system resistance. Recheck the calculation with measured flow before approving the design.

Compare Copper (~385 W/m·K) and Aluminum (~205 W/m·K) Heat Transfer

How to Choose a Water Cooler Evaporator for Global Sourcing?

Material selection directly affects evaporator efficiency, weight, cost, and service life. Copper offers approximately 385 W/m·K thermal conductivity, while aluminum provides about 205 W/m·K. These reference values align with material data discussed in the ASHRAE Handbook—Fundamentals, 2021. Copper can transfer heat faster through compact evaporator tubes. This advantage may support smaller temperature differences and faster pull-down.

Aluminum remains attractive for global sourcing because it weighs roughly one-third as much as copper. NIST material data lists densities near 2.70 g/cm³ for aluminum and 8.96 g/cm³ for copper. Lower weight can reduce freight costs and simplify cabinet assembly. However, aluminum often needs larger surface areas or optimized fin geometry. Design details matter more than conductivity alone.

Field experience shows that refrigerant compatibility, joining quality, wall thickness, and corrosion protection can change the final result. The ASHRAE Handbook—HVAC Systems and Equipment, 2020, emphasizes evaluating heat exchangers as complete systems. A copper evaporator may perform better in a tight cabinet, but it can increase material cost and shipping weight. Aluminum may be more practical for large-volume orders. Not always.

Ask suppliers for thermal calculations, pressure-test records, alloy details, and salt-spray results. Compare tested capacity at the same refrigerant, inlet temperature, airflow, and ambient condition. Published conductivity is only a starting point. Real performance can disappoint when manufacturing tolerances are ignored.

Screen R290 (GWP 3) Versus R134a (GWP 1,430) Under ISO 817

How to Choose a Water Cooler Evaporator for Global Sourcing?

Screening R290 against R134a should begin with ISO 817, not only price or cooling capacity. ISO 817 classifies R290 as A3, meaning lower toxicity and higher flammability. R134a is classified A1, with lower flammability risk. Common refrigerant data lists R290 near GWP 3 and R134a near GWP 1,430 under the 100-year scale. The difference is substantial. A small leak from an R134a system carries far greater climate impact.

The evaporator must match refrigerant pressure, boiling temperature, oil chemistry, and compressor design. For R290, engineers should check charge limits, ventilation, electrical ignition sources, and leak detection. These details affect water tank layout and service access. R134a may simplify safety planning, but its high GWP can create procurement pressure. The UNEP 2023 Technology and Economic Assessment Panel reports continuing global movement toward lower-GWP refrigeration options. Local implementation still varies.

Do not trust a catalog number alone. Ask for test data at the intended water inlet temperature, ambient condition, and flow rate. Confirm materials, brazing quality, pressure testing, and insulation performance. The U.S. EPA lists propane as a low-GWP alternative in several refrigeration applications, subject to use conditions and safety requirements. That does not automatically make every R290 evaporator suitable. My practical mistake would be comparing only COP; noise, frosting, charge size, and installer capability can change the result. The figures also need checking against the latest regional rules before global sourcing.

Specify 304 Stainless Steel (~16 W/m·K) for Hygienic Water Contact

How to Choose a Water Cooler Evaporator for Global Sourcing?

Specify 304 stainless steel for all surfaces touching drinking water. Its thermal conductivity is approximately 16 W/m·K at room temperature, according to engineering data referenced in the ASHRAE Handbook. This value supports efficient heat transfer while offering strong corrosion resistance in ordinary drinking-water conditions. However, conductivity is not the whole answer. A thin wall may cool quickly, yet poor welds can create crevices, residue, and cleaning problems. The material grade should be documented through mill certificates and verified against ASTM A240 requirements.

For hygienic water contact, request a smooth internal finish. EHEDG hygienic design guidance commonly recommends surface roughness around Ra ≤0.8 μm for cleanable product-contact surfaces. NSF/ANSI 51 also provides material and construction criteria for food-equipment components. Specify continuous welds, rounded internal transitions, and no exposed copper or plated metal. In practice, I would also test the assembled evaporator, not only the steel coupon. Small design details often fail inspection. This is easy to underestimate.

Tips: Ask suppliers for 304 certificates, weld-passivation records, Ra inspection results, and water-contact declarations. Confirm thermal performance using entering-water temperature, ambient temperature, refrigerant, and flow rate. The 16 W/m·K figure is a reference value, not a guaranteed system result. Request samples before approving mass production.

How to Choose a Water Cooler Evaporator for Global Sourcing? - Specify 304 Stainless Steel (~16 W/m·K) for Hygienic Water Contact

Material comparison for evaporator coils, cold plates, and wetted components used in drinking-water cooling systems

Evaluation Dimension	304 Stainless Steel (Recommended)	316L Stainless Steel	Copper	Aluminum
Global sourcing position	Preferred baseline	Premium alternative	Use only with verified water-contact suitability	Use mainly where isolated from drinking water
Typical thermal conductivity at approximately 20 °C	Approximately 16 W/m·K	Approximately 14–15 W/m·K	Approximately 390–400 W/m·K	Approximately 200–235 W/m·K
Typical density	Approximately 8.0 g/cm³	Approximately 8.0 g/cm³	Approximately 8.9 g/cm³	Approximately 2.7 g/cm³
Drinking-water hygiene suitability	Suitable when the grade, fabrication, cleaning, and applicable local regulations are controlled	Suitable and generally more resistant to chloride-containing water	Water chemistry must be carefully assessed because copper can dissolve into water	Requires careful control of water chemistry, surface condition, and protective design
Corrosion behavior	Good general corrosion resistance; susceptible to pitting in high-chloride conditions	Better resistance to pitting and crevice corrosion than 304 in many chloride environments	Can corrode in acidic, oxidizing, or ammonia-containing conditions and may develop patina	Can be vulnerable to alkaline or acidic water and galvanic corrosion when coupled to dissimilar metals
Recommended water-contact surface	Continuous, cleanable surface with welds fully finished and free from crevices	Continuous, cleanable surface with enhanced chloride resistance	Only after water-compatibility and regulatory review	Preferably separated from the potable-water path by a suitable barrier
Typical hygienic finish target	Specify smooth, cleanable surfaces; Ra ≤ 0.8 µm is a common hygienic design target	Specify smooth, cleanable surfaces; Ra ≤ 0.8 µm is a common hygienic design target	Surface treatment and coating requirements must be defined separately	Surface protection and coating requirements must be defined separately
Fabrication and joining	TIG welding is widely available; weld discoloration should be removed and the surface passivated where required	TIG welding is widely available; post-weld cleaning and passivation are important	High thermal conductivity makes welding and brazing more heat-intensive	Welding is feasible but oxide control and distortion management are important
Thermal expansion coefficient	Approximately 17.2 µm/m·K	Approximately 15.9 µm/m·K	Approximately 16.5–17 µm/m·K	Approximately 23 µm/m·K
Galvanic compatibility	Avoid direct contact with less noble metals in wet areas; use electrical isolation where necessary	Similar precautions to 304; particularly important with aluminum and carbon steel	Can accelerate galvanic attack of aluminum or carbon steel when electrically connected in water	High galvanic risk when directly connected to copper or stainless steel in an electrolyte
Cleaning and sanitation considerations	Supports routine cleaning when chloride exposure, chemical concentration, temperature, and rinse procedures are controlled	Offers additional margin where chloride exposure is expected	Cleaning chemicals must be checked for compatibility and metal-ion release	Strongly alkaline cleaners and incompatible chemicals may attack the surface
Best use in a water cooler	Evaporator shell, coil, cold plate, fittings, and other wetted components requiring a balanced specification	High-chloride water regions, demanding sanitation conditions, or applications requiring extra corrosion margin	Internal heat-transfer path only when separated from drinking water or specifically approved for the water chemistry	Dry-side heat-transfer surfaces or isolated components where low weight and high conductivity are priorities
Suggested procurement specification	304 stainless steel; certified material grade; smooth cleanable wetted surfaces; controlled weld quality; no stagnant pockets; passivation or equivalent surface treatment where required	316L stainless steel; use when chloride concentration or corrosion risk justifies the additional material cost	Define alloy, coating or isolation method, water chemistry limits, and metal-release acceptance criteria	Define alloy, protective treatment, galvanic isolation, and water-contact approval requirements

Values are typical room-temperature engineering data and can vary with alloy, temper, surface condition, and test method. Final material selection should be verified against the target water chemistry, applicable drinking-water regulations, sanitation procedure, and product certification requirements.

Audit Global Suppliers Against IEC 60335-2-24 and A3 Refrigerant Safety

How to Choose a Water Cooler Evaporator for Global Sourcing?

Global sourcing starts with refrigerant risk, not price. UNEP’s 2023 Global Cooling Watch report projects cooling demand will more than triple by 2050 without stronger efficiency measures. That growth increases pressure on compact evaporator designs. For A3 refrigerants, audit suppliers against IEC 60335-2-24, the standard covering household and similar refrigerating appliances. Check the current edition, national deviations, refrigerant charge limits, electrical protection, and abnormal-operation tests. A supplier’s certificate is useful, but it is not enough. Ask for test reports, production records, and traceability for every safety-critical component.

A practical audit follows the refrigerant path. Inspect brazed joints, service ports, tubing supports, and enclosure ventilation. Confirm ignition sources remain separated from possible leak points. Review pressure testing, leak testing, and assembly training. ISO 817 classifies A3 refrigerants as highly flammable, so laboratory results should match the final water cooler, not a similar prototype. The IEA’s The Future of Cooling report also highlights rising cooling electricity demand, making evaporator efficiency important during supplier comparison. Small losses become expensive across thousands of units.

Tips: Request a sample audit before signing. Record charge mass, airflow, outlet temperature, and power use. Repeat tests after transport vibration. One weakness remains easy to miss: suppliers may control design changes poorly. Require written change notification, even when the change appears minor.

How to Choose a Water Cooler Evaporator for Global Sourcing?

Refrigerant screening against IEC 60335-2-24 design expectations and ASHRAE 34 safety classifications.

The chart compares approximate normal boiling points at 1 atmosphere. R-290 and R-600a are classified as A3 refrigerants, meaning higher flammability controls are required. During supplier audits, verify refrigerant charge, sealed-system integrity, ignition-source control, ventilation, warning labels, electrical safety, and production testing against the applicable edition of IEC 60335-2-24 and local market requirements. A lower boiling point does not by itself indicate a better evaporator design.

Reference basis: ASHRAE Standard 34 safety-group classifications and published refrigerant thermophysical data. Values are approximate.
